Professional-Grade Performance with 185 Stitches and 3 Fonts

Step into JUKI’s legacy of industrial precision with the HZL-DX5—an advanced sewing and quilting machine built for the creative maker who values reliability, versatility, and stitch perfection. Whether you're working with heavy denim or delicate lace, the HZL-DX5 delivers consistent results with every project thanks to JUKI’s box feed system and innovative features inspired by industrial sewing.

Designed for sewists who demand performance and precision, the HZL-DX5 makes it easy to bring your vision to life. Enjoy 185 built-in stitch patterns, 3 fonts for monogramming, 16 buttonhole styles, and user-friendly features like the presser foot pivot function, adjustable speed control, and automatic thread trimming—all in one sleek, computerized machine.

Key Features:

• Presser Foot Pivot Function – When you stop sewing, the needle stops in the down position and the presser foot automatically lifts, making it easy to pivot around curves and corners.

• Box Feed System – Feeds heavy and lightweight fabrics evenly and accurately for flawless stitching on every material.

• Free Motion Sewing – Drop the feed dogs and flip the switch to enjoy smooth, free-motion stitching in both straight and zigzag modes.

• Straight Stitch Slide Plate – Converts to a single needle hole plate with a simple slide, preventing fabric from getting pushed into the needle hole during precision sewing or free motion quilting.

• Automatic Thread Trimming – Trim both needle and bobbin thread with the push of a button or tap of your heel.

• Buttonhole Sensor System – Automatically measures and sews perfectly even buttonholes using JUKI’s advanced sensor technology.

• Lock Stitch/Reverse Options – Lock stitches at the beginning or end of your seam—or complete one full pattern cycle for decorative stitching perfection.

• Adjustable Stitch Speed – Choose from fast, normal, or slow speeds to match your comfort level or project requirements.

Specifications:

• Sewing Speed: 1,050 stitches per minute

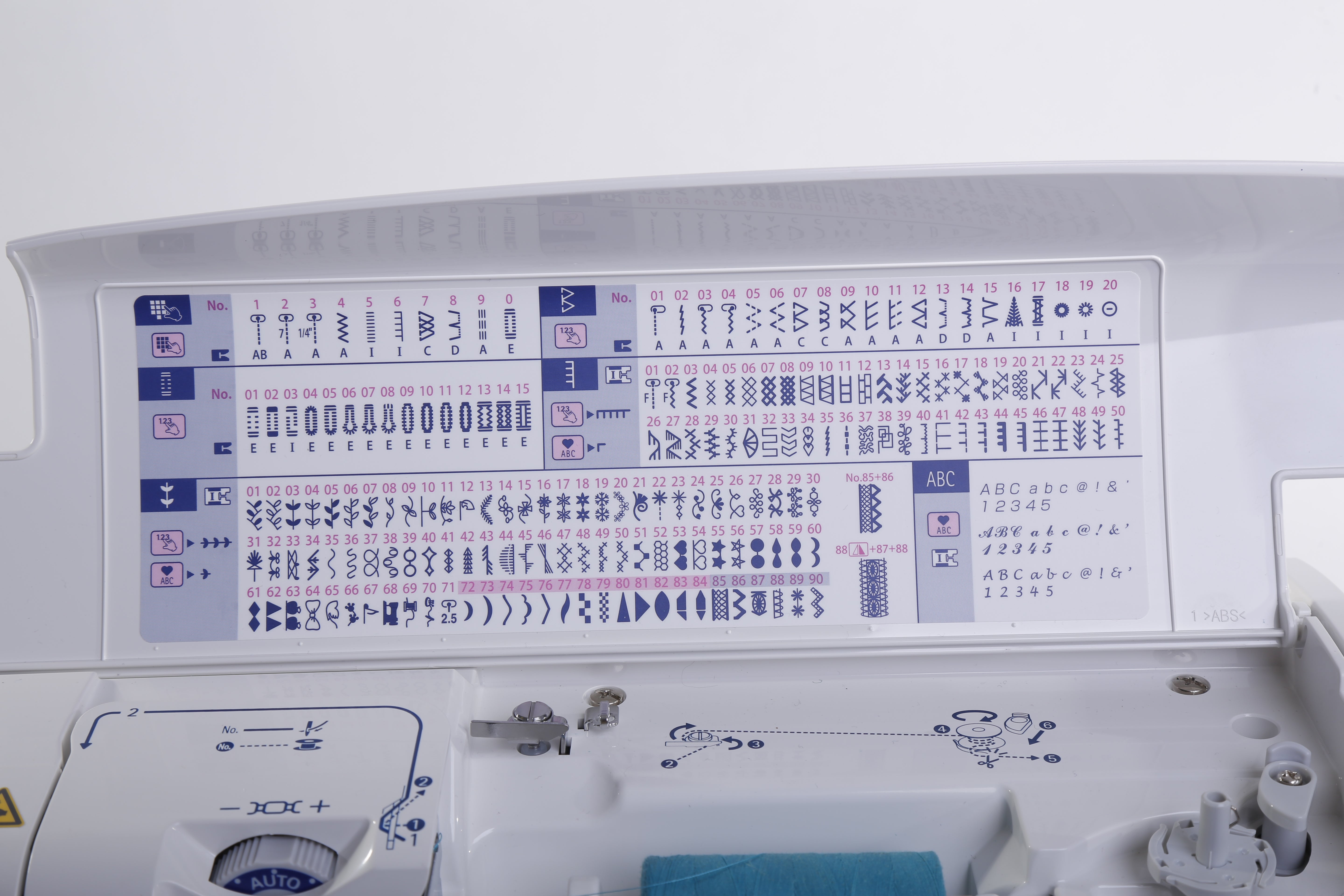

• Stitches: 185 built-in stitch patterns

• Fonts: 3 alphabetic/numeric fonts

• Buttonholes: 16 types

• Maximum Zigzag Width: 7mm

• Maximum Stitch Length: 5mm

• Needle System: 130R / 705H

• Presser Foot Lift: Electronic

• Adjustable Presser Foot Pressure: Yes

• Bobbin Type: Class 15

• Shank Type: Low

• Machine Weight: 21.6 lbs

• Dimensions: 17.5” (W) x 11.5” (H) x 8.25” (D)

Included Accessories:

• Standard Presser Foot

• Zipper Foot

• Overcasting Foot

• Blind Stitch Foot

• Buttonhole Foot (Sensor & Manual)

• Walking Foot

• Patchwork and Quilt Feet

• Quilt Guide

• Knee Lifter

• Foot Controller

• Hard Case

• Wide Table

• Bobbins, Needles, Twin Needle

• Auxiliary Spool Pin

• T-Shape Screwdriver

• Seam Ripper, Cleaning Brush

• Spool Cap, Power Cord

• Instruction Manual & DVD

Optional Accessories:

• Stitch Area Magnifier

• Rolled Hem, Edge Sewing, and Binder Feet

• ¼” Presser Foot, 1/4" Guide Foot

• Pintuck Feet (Narrow & Wide)

• Invisible, Narrow, and Adjustable Zipper Feet

• Appliqué, Cording, Embroidery, and Fringe Feet

• 7-Hole and Pearl Attaching Feet

• Ruler Foot, Open Toe, and Zigzag Quilt Feet

• Heavy User Kit, Creative Set, and Advanced Quilter’s Kit

• Thread Stand and Straight Stitch Throat Plate
