JUKI Professional Quilting and Sewing Machine

Designed for serious quilters and advanced sewists, this JUKI machine merges industrial-grade durability with refined precision for home use. Equipped with a powerful motor, customizable controls, and professional-quality components, it delivers unmatched stitch quality on everything from delicate fabrics to thick quilt sandwiches.

With a sewing speed of up to 1,500 stitches per minute, an automatic thread trimmer, sub-tension unit, and free-motion capabilities, this machine is engineered for speed, strength, and smooth operation—whether you're piecing, quilting, hemming, or crafting garments.

Key Features

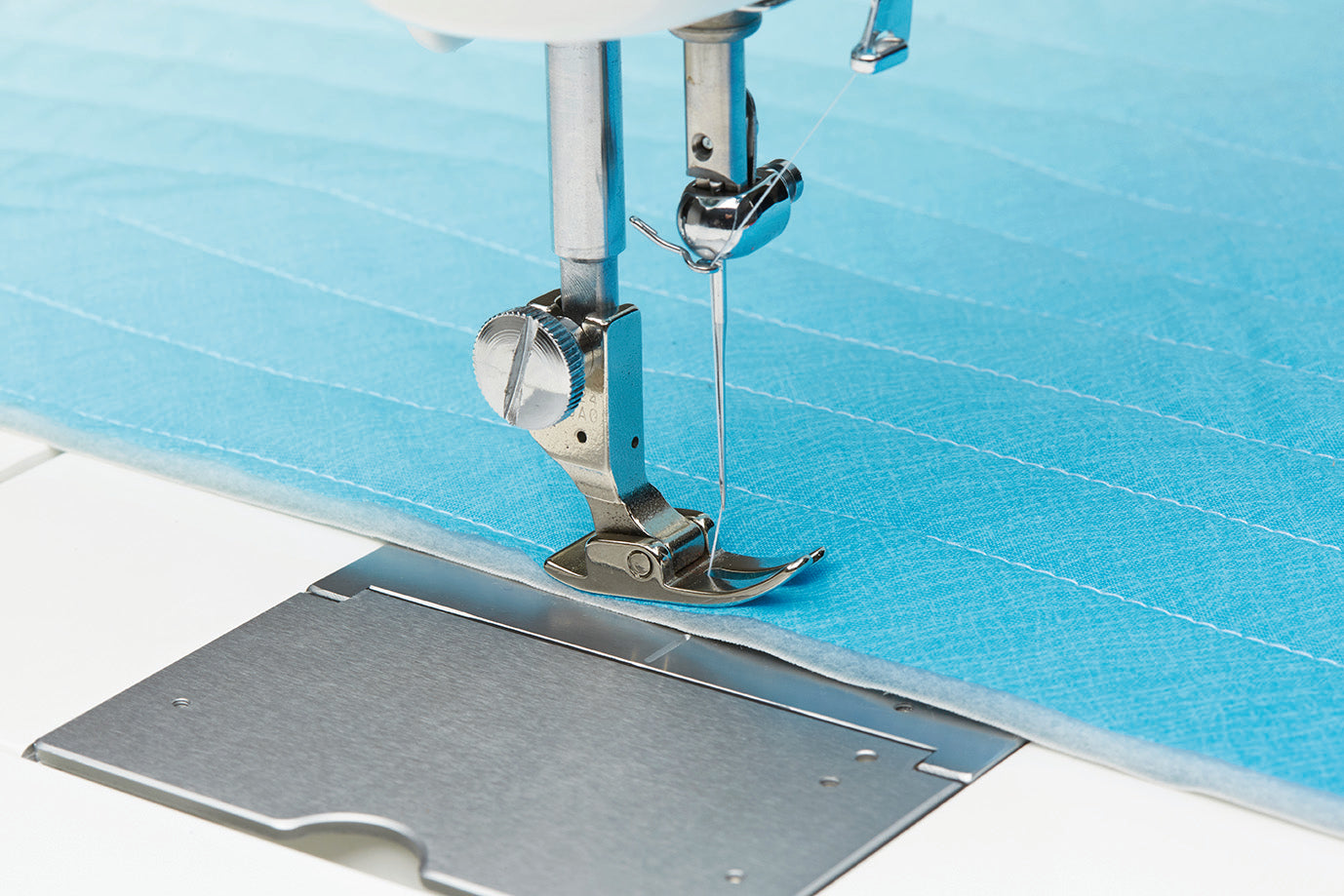

Float Function (Micro-Lifter Technology)
Eliminates uneven stitching on thick seams, velvet, or knits by allowing the presser foot to hover 0 to 2 mm above the fabric. Ideal for quilting and layered sewing.

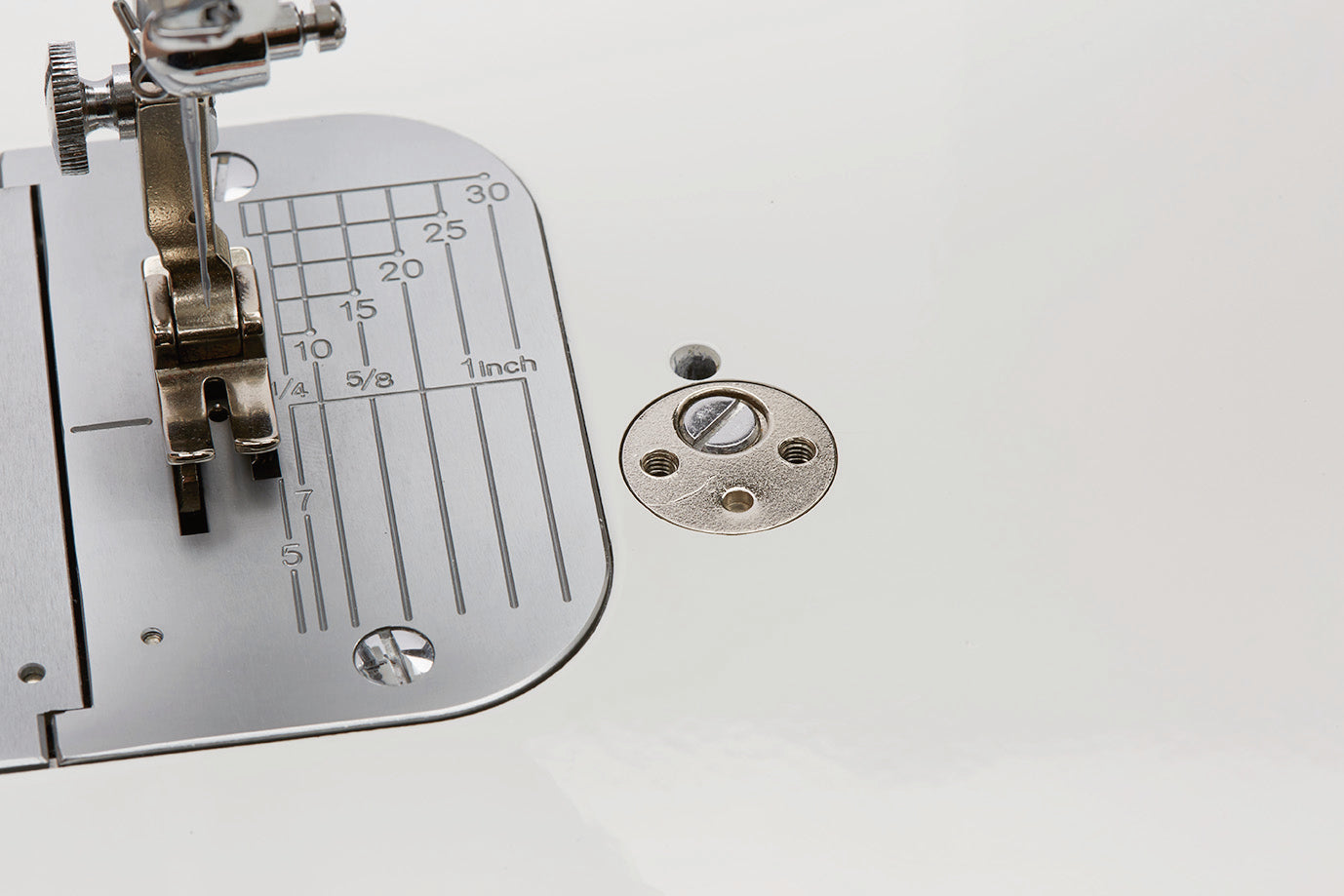

Attachment Mounting Plate
Allows easy installation of guides and optional accessories. Designed for long-term durability, this mounting plate can be replaced independently if the screw holes wear out.

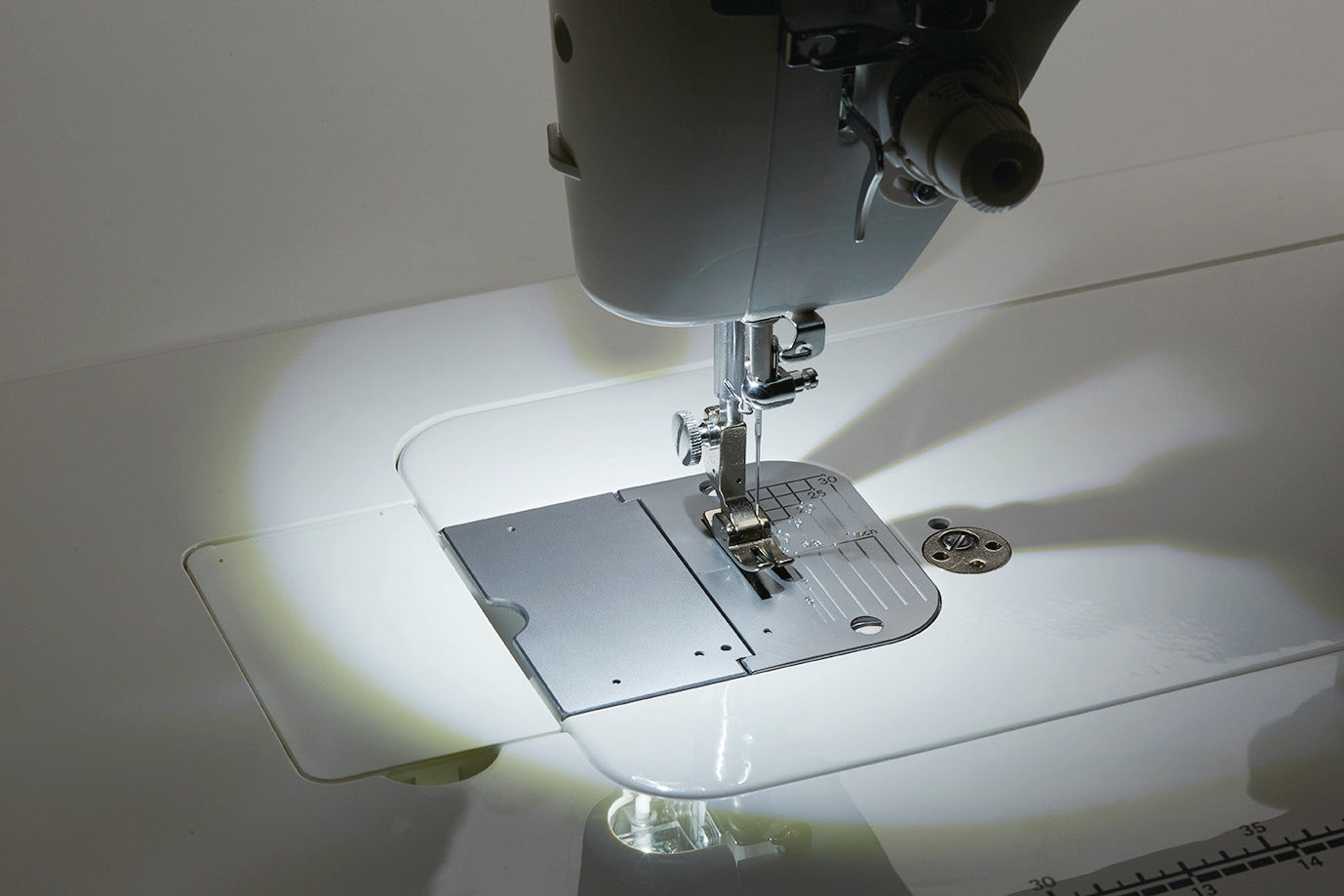

LED Sewing Light with Adjustable Brightness
Four brightness settings (high, medium, low, and off) help reduce eye strain and enhance visibility while working on all fabric types and thread colors.

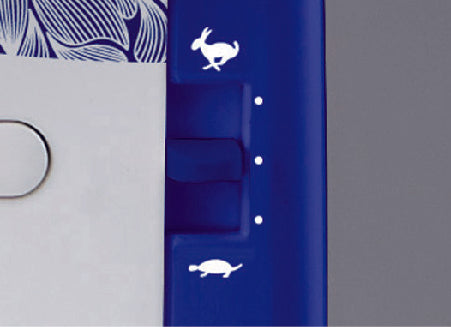

Adjustable Maximum Sewing Speed
Control your speed from 200 to 1,500 stitches per minute using the easy-access slide dial. Ideal for both detailed work and long seams.

Drop Feed System
Lower the feed dogs with a simple lever to switch to free-motion quilting or embroidery.

Automatic Needle Threader
Effortlessly threads the needle with a single lever push, reducing eye strain and setup time when changing threads frequently.

Automatic Thread Trimmer
Trim both needle and bobbin threads at the push of a button or with heel activation on the foot pedal. Built-in industrial-quality trimmers ensure durability and quiet operation.

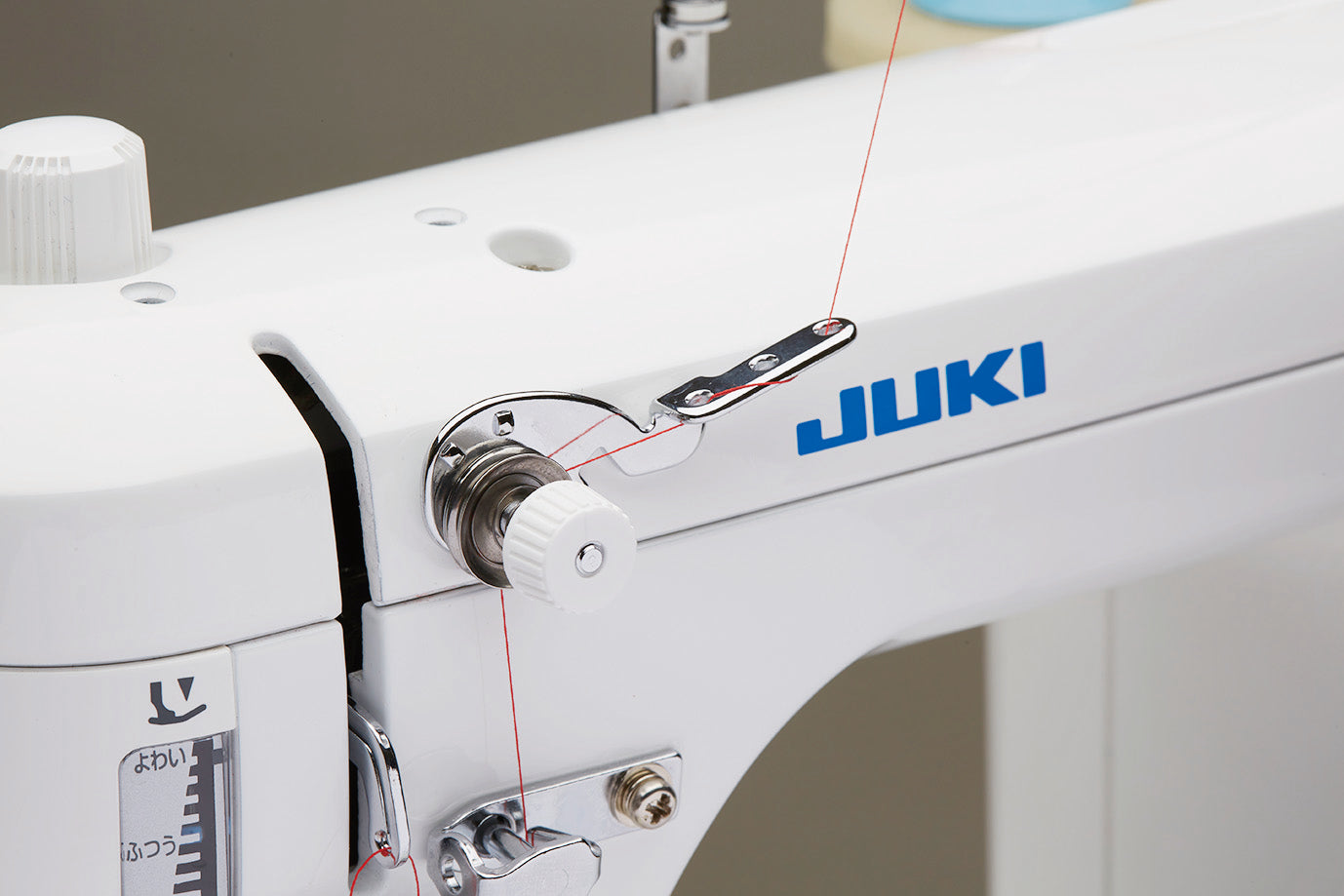

Sub-Tension Unit
Maintain balanced thread tension across various thread types for consistent, clean stitching.

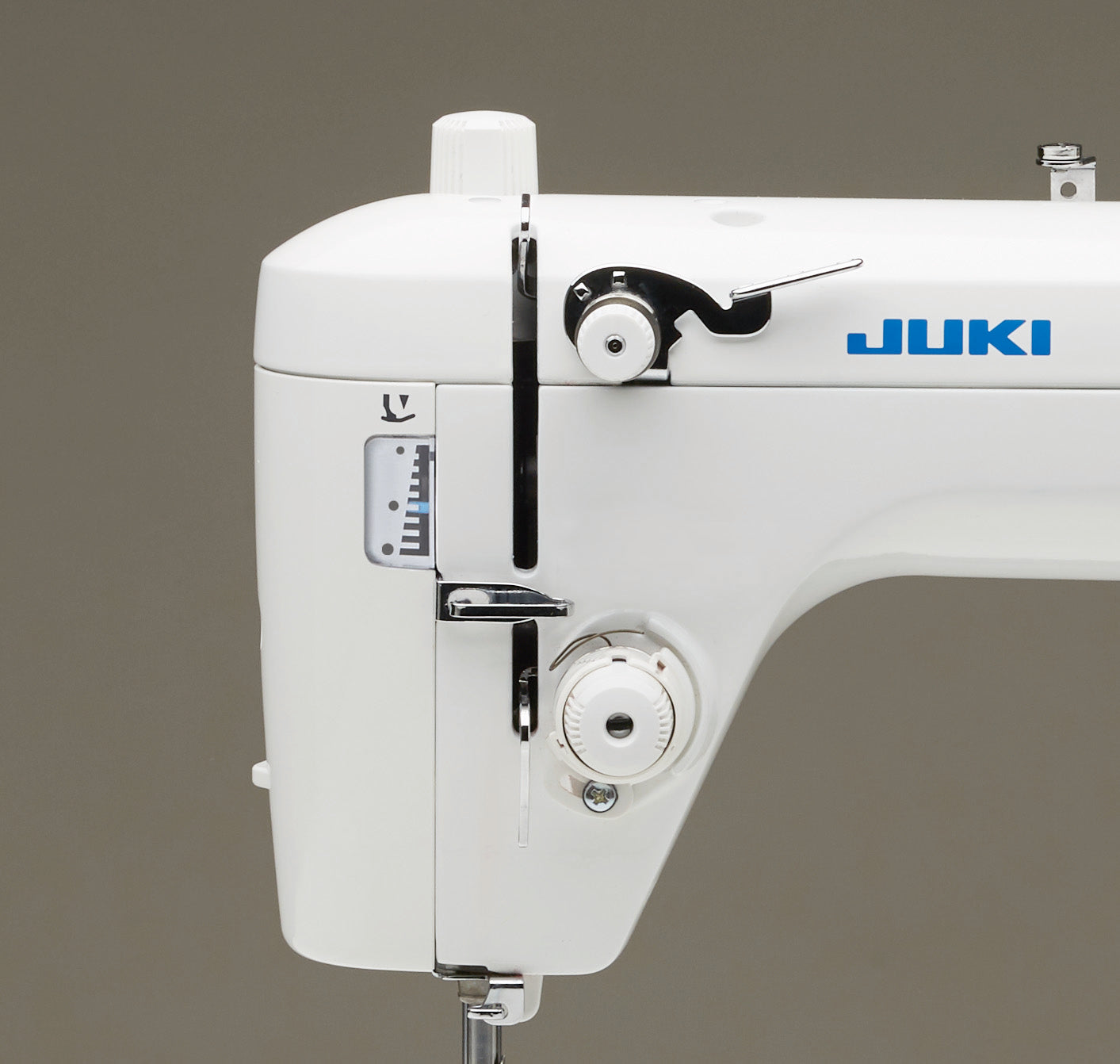

Presser Foot Pressure Adjustment
Adjust pressure with the top-mounted regulator to accommodate a wide range of fabric thicknesses, from fine cottons to heavy upholstery fabrics.

Needle Up/Down Control
Manually or automatically stop the needle in the up or down position. Half-step control allows precise corner turns and accurate stitch placement.

Knee Lifter Lever
Lift the presser foot up to 12mm without using your hands. Especially useful for inserting thick projects or when pivoting during quilting.

Foot Controller with Thread Trimming
Control start/stop speed and trim threads directly from the foot pedal. Includes a stopper to disable heel-activated trimming if desired.

Specifications

• Sewing Speed: 55 – 1,500 SPM

• Maximum Stitch Length: 6 mm (0.2 in)

• Presser Foot Lift: Up to 10 mm by hand, 12 mm by knee lifter

• Needle System: HA x 1 (130/705H) / HL x 5 (#9 – #18)

• Machine Dimensions: 18 in (W) x 14 in (H) x 9 in (D)

• Auxiliary Table Dimensions: 23 in (W) x 14 in (D)

• Weight (Machine Only): 25.4 lb (11.5 kg)

• Lighting: 4-step adjustable LED

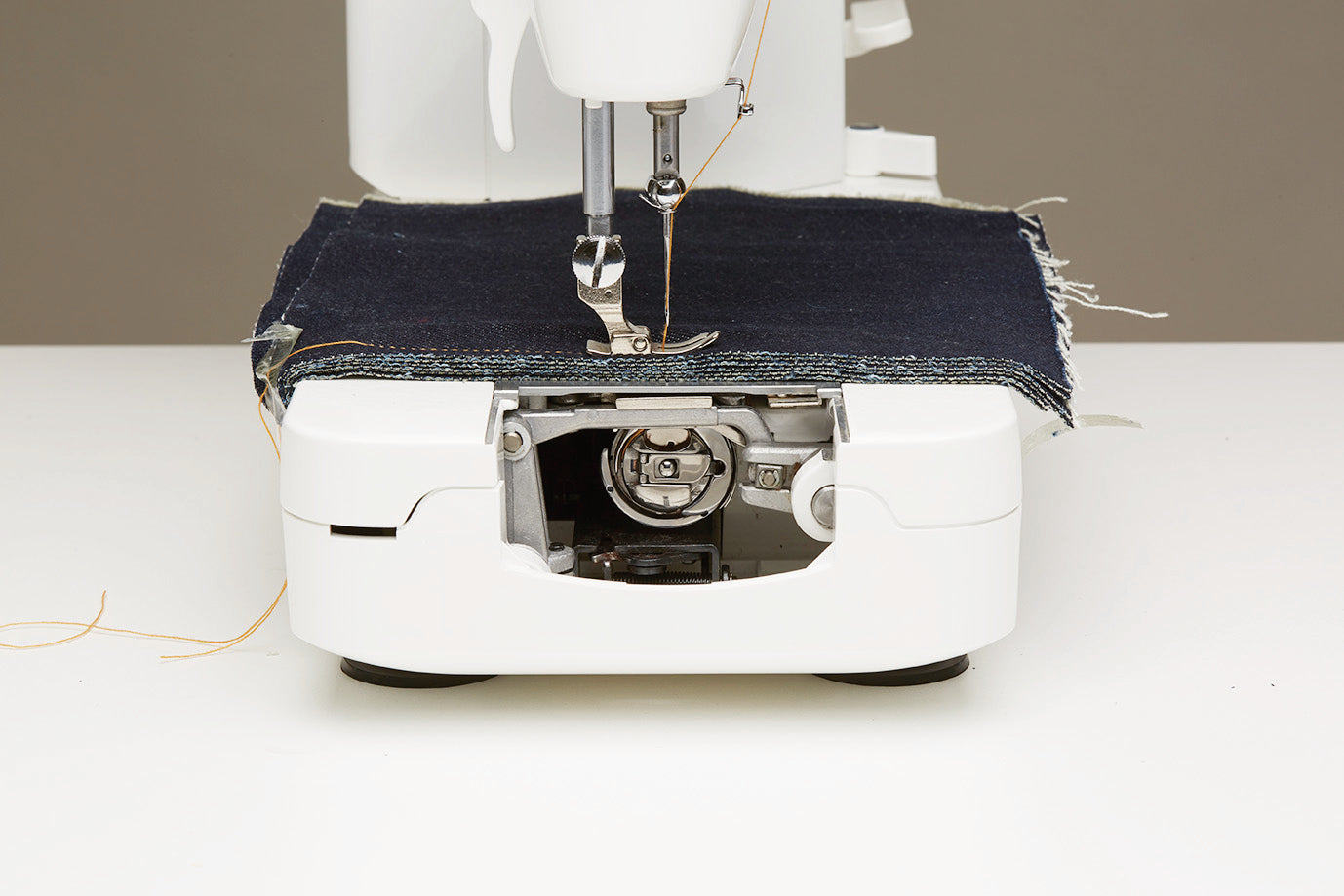

• Hook Type: Vertical full-rotary hook

• Shank Type: High shank

Included Accessories

• 1/4" Presser Foot with Side Guide

• Even Feed Foot

• Quilt Guide for Even Feed Foot

• Quilting Foot (Front Open Toe)

• 1/5" Quilting Foot for Free-Motion

• 1/4" Quilting Foot for Echo Quilting

• Hemming Foot (3 mm)

• Zipper Attaching Foot (adjustable right/left position)

• Auxiliary Table

• Foot Switch Stopper

• Knee Lifter Lever

Optional Accessories

• Compensating Foot (Right 7.0 mm)

• Quilting Foot Side Open Toe (for Free Motion Table) - Part No. 40166734

• Solid Cording Foot (Right/Left)

• Hinged Cording Foot

• Hinged Zipper Foot

• Piping Foot

• Smooth Foot (for leather or vinyl)

• Foot & Throat Plate for Thin Fabric

• Throat Plate for Thick Fabric

• Magnetic Gauge (for edge guiding)

• Echo Quilting Foot with built-in guides - Part No. 40166739

• Compensating Foot (Right/Left 1.5 mm)

• Swing Gauge (edge guide with screw attachment)

• 1/4" Quilting Foot for Ruler Work - Part No. 40166729

• Free Motion Table (for longitudinal sewing setup)

• Invisible Zipper Foot

• Grip & Stitch Quilting Disks (pair)

This machine is built to handle demanding sewing and quilting tasks with precision and ease. Whether you're working on a large quilt, a custom garment, or intricate free-motion designs, the JUKI professional sewing and quilting machine offers the control, speed, and reliability to elevate your craft.
