ABOUT THE PRODUCT

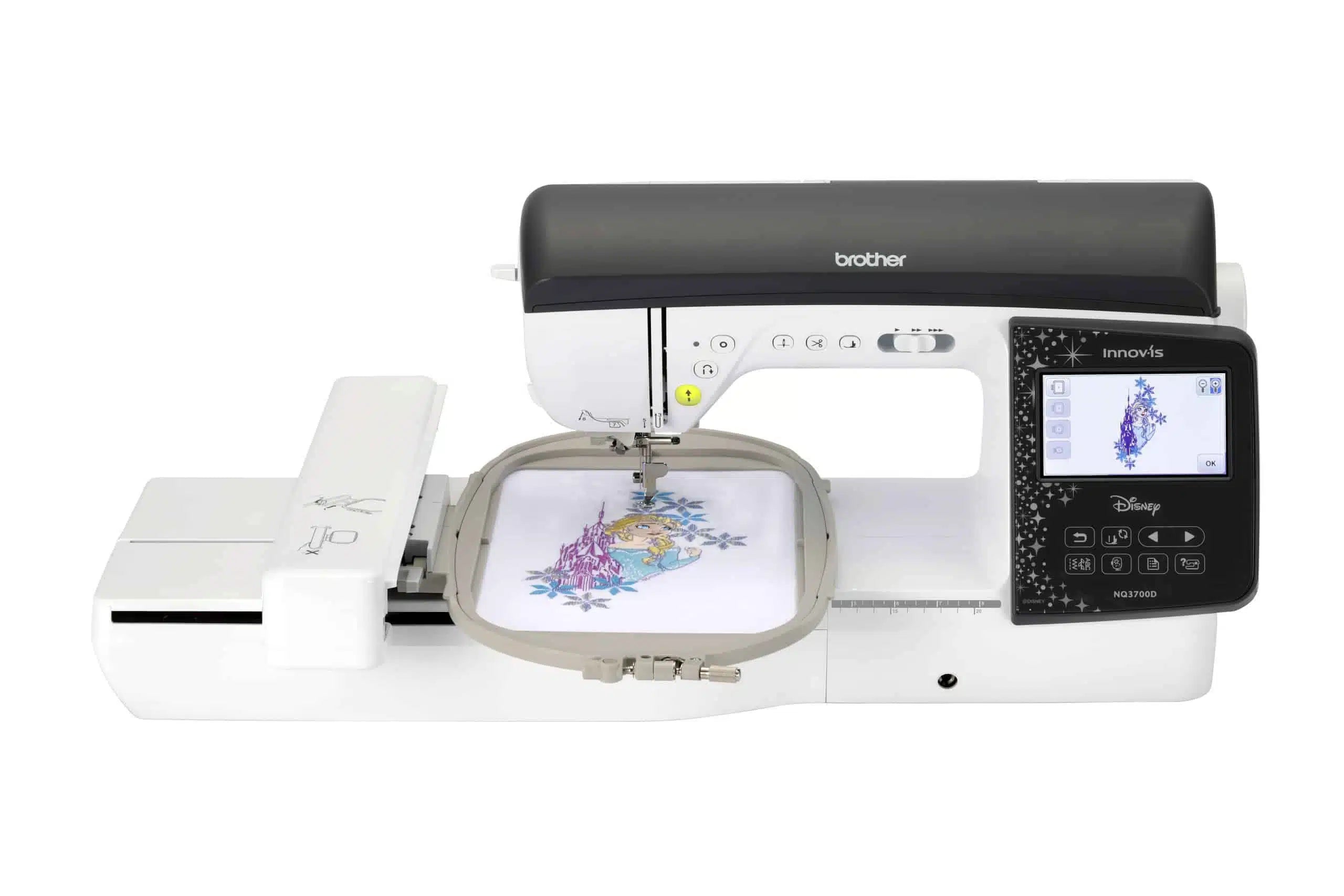

A combo machine with plenty to offer, the NQ3700D has luxurious features such as 313 built-in embroidery designs, including 55 Disney designs, 291 built-in stitches, and, when connected to a wireless network, the ability to send files wirelessly to your machine via Design Database Transfer. See all your designs on the clear 4.85" color LCD touch screen display with an easy user interface. Here you can do on-screen editing, including letter editing, resizing, rotating, repositioning, drag and drop, and combining designs. Combined with a generous 6" x 10" workspace, with the NQ3700D, there is no telling what you'll create next.
Main Features
- An abundance of built-in embroidery designs 313 built-in embroidery designs, including 55 Disney, 140 frame pattern combinations, and 13 lettering fonts for your embroidery side.
- Plenty of sewing designs and fonts 291 built-in stitches, 10 styles of one-step auto-size buttonholes, and 5 sewing lettering fonts for your sewing side.
- Large work area A maximum embroidery field of 6" x 10" can accommodate large projects, and the healthy 8.3" from needle to arm gives you more room to easily maneuver fabric.
- Wireless capability When connected to a wireless network, send designs to your NQ3700D using Design Database Transfer (no USB needed).
- Color Display A brilliant and sharp 4.85" color LCD touch screen display welcomes you with an easy user interface. Here you can do on-screen editing, including letter editing, enhanced zoom, resizing, rotating, repositioning, drag and drop, and combining designs.
- Automatic Height Adjuster (AHA) automatically senses your fabric for smooth even stitches
- Automatic feed thread cutting system conveniently cuts thread between color stitch blocks
- My Custom Stitch with the ability to combine and edit custom and built-in sample stitches
- Pivot function for precise corners, smoother circles, and easier chain piecing
- Color sort
SPECIFICATIONS
Basic Features
| Accessory Storage | Yes |
|---|---|
| Adjustable Screen Brightness | Yes |
| Automatic Thread Cutter | Yes |
| Branded Series | Disney |
| Built-in Languages | Yes |
| Display Type | LCD |

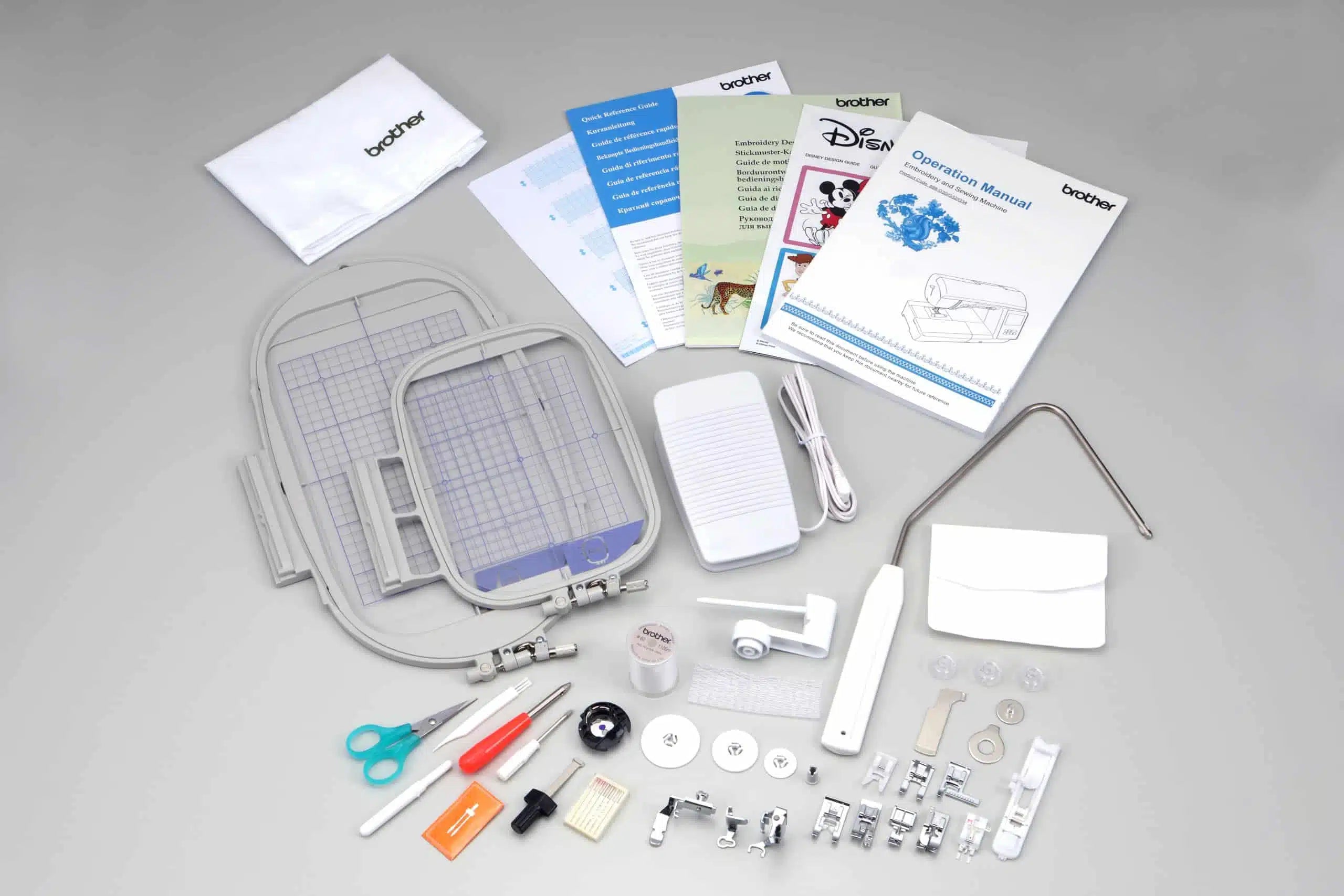

| Included Accessory Feet | Buttonhole Foot, Button Fitting Foot, Zipper Foot, Overcasting Foot, Blindstich Foot, Monogramming Foot, Zigzag Foot, Embroidery Foot, Open Toe Foot, Non-Stick Foot, Adjustable Zipper/Piping Foot, Free-Motion Quilting Foot, Stitch Guide Foot |
| Needle Position Key (Up/Down) | Yes |
| Needle Threading System | Advanced |
| Presser Foot Leveling | Yes |
| Quick Set Bobbin | Yes |
| Realistic Preview | Yes |
| Specialty Feet Included | Yes |
| Start/Stop Button | Yes |
| Stitch Selector Type | Touch Panel |
| Thread Sensor | Bobbin Sensor, Upper Thread Sensor |
| USB | Yes |
Dimensions
| Carton Dimensions (W" x D" x H") | 22.48" x 26.87" x 21.97" |
|---|---|
| Carton Weight (lbs) | 50.71 |
| Unit Weight (lbs) | 22.05 |
Embroidering
| Automatic Feed Thread Cutting | Yes |
|---|---|
| Built-In Alphabet Fonts | 13 |
| Built-In Designs | 313 |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 55 |
| Built-in Embroidery Lettering Alphabet Fonts | 13 |
| Computer Connectivity | Yes |
| Drag and Drop Editing | Yes |
| Frame Designs - Shapes | 10 |
| Frame Designs - Stitches | 14 |
| Included Embroidery Hoops | 6" x 10", 5" x 7" |
| Maximum Embroidery Speed (spm) | 850 |
| Monogramming Font Styles | Yes |
| My Custom Design Feature | No |
| On-Screen Editing | Yes |
| On-Screen Help | Yes |
| Pattern Rotating Increments | 1 Degree, 10 Degrees, 90 Degrees |
| Programmable Monochrome Embroidery | N/A |
| Resume Function | No |
| Standard Included Frames | 5" x 7", 6" x 10" |
| Thread Anchor | N/A |
| Thread Wiper | No |
Sewing
| Automatic Height Adjustment (AHA) | Yes |
|---|---|
| Back to Beginning Key | No |
| Built-In Lettering Fonts | 5 |
| Built-In Stitch Selections (Stitches) | 291 |
| Button Hole Styles | 10 |
| Knee Lifter | Yes |
| Maximum Sewing Speed (Stitches Per Minute) | 850 |
| My Custom Stitch Feature | Yes |
| Pivot Function | Yes |
| Speed Control | Yes |
| Stitch Length (mm) | 5 |
| Stitch Width (mm) | 7 |
Product Warranty InformationAt Authorized Vac and Sew, we stand behind the quality of the products we sell. Every sewing machine purchased from us comes with a 1-year warranty covering all parts and labor through Authorized Vac and Sew for added peace of mind. Extended warranty options are also available for select models.Below, you’ll find warranty details for various product categories. If you have any questions about warranty coverage or would like to explore extended warranty options, please contact us at (559) 439-2560 or email us at Customerservice@authorizedvacandsew.comManufacturer WarrantiesMost products sold by Authorized Vac and Sew are covered by the original manufacturer’s warranty. Warranty terms vary by brand and product type. Below is a general guide to what is typically covered:Sewing Machines & Embroidery Machines
- Bernina: Up to 20-year limited warranty (parts), 5-year electrical, 2-year labor.
- Baby Lock: Up to 25-year limited warranty (parts), 10-year electrical, 1-year labor.
- Brother: Varies by model; typically 25-year limited warranty on chassis, 5-year electrical, 1-year labor.
- Janome: Up to 25-year limited warranty (parts), 5-year electrical, 1-year labor.
- Handi Quilter: Up to 10-year limited warranty (parts), 5-year electrical, 1-year labor.
For full details on a specific brand's warranty, please refer to the manufacturer’s website or contact us for assistance.Vacuum Cleaners
- Miele: 7-year warranty on motor, 1-year on parts and labor.
- Riccar: Varies by model, typically 4-8 years on motor and 1-3 years on parts.
- Simplicity: Up to 5-year warranty on motor and parts.
Furniture & Accessories
- Arrow & Kangaroo Cabinets: 3-10 year warranty depending on the product.
- Sew Steady Tables: Limited 1-year warranty on manufacturing defects.
- AccuQuilt Cutters & Dies: 1-year warranty on defects.
What’s Not Covered?
- Normal wear and tear
- Misuse, neglect, or improper maintenance
- Damage caused by unauthorized repairs
- Commercial use of household machines (unless otherwise stated in warranty)
How to File a Warranty ClaimIf you experience an issue covered under warranty:
- Locate your purchase receipt – Proof of purchase is required.
- Contact the manufacturer – Many brands require direct warranty claims.
- Contact Authorized Vac and Sew – If you need assistance with your warranty claim, call us at (559) 439-2560 or visit our store.
For extended service options or repairs beyond the warranty period, we offer professional servicing to keep your machine running smoothly.
